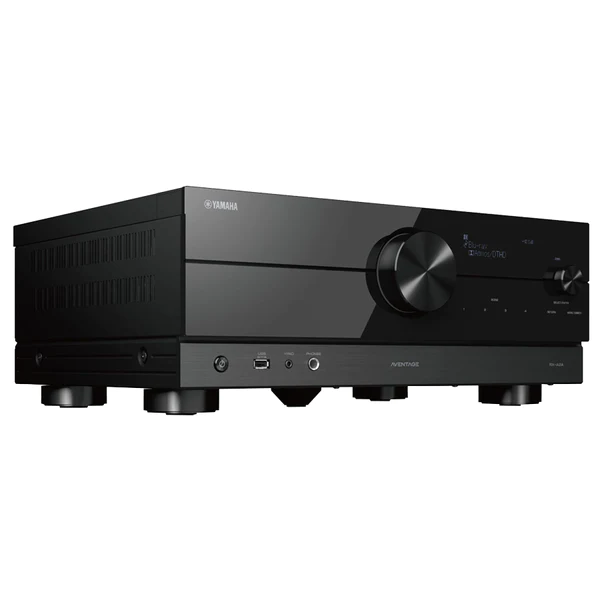

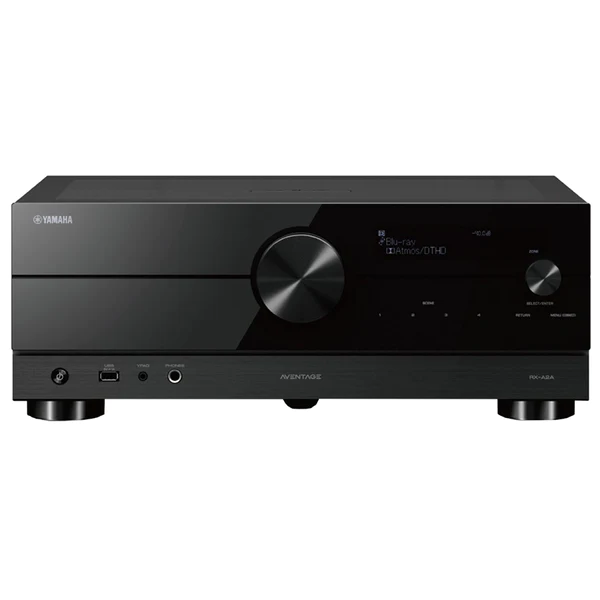

Yamaha Aventage RXA2A AV Home Theatre Receiver

7.2 Channel powerful surround sound with Zone2
Wi-Fi, Bluetooth®, Airplay 2, Spotify Connect and MusicCast multi-room audio
Dolby Atmos® with height virtualization
HDMI™ 7 in/1 out, HDR10+, Dolby Vision
Dedicated gaming function ALLM,VRR
Voice control with Alexa and Google Assistant devices. *Availability varies by region
MusicCast Surround capable - add MusicCast 20 or MusicCast 50 speakers to create wireless surround sound
YPAO™-R.S.C. (Reflected Sound Control) sound optimisation

AV Receiver
Amplifier Section

• Channel 7.2
• Rated Output Power (1kHz, 1ch driven) 125 W (8 ohms, 0.9% THD)
• Rated Output Power (20Hz-20kHz, 2ch driven) 100 W (8 ohms, 0.06% THD)
• Maximum Effective Output Power (1kHz, 1ch driven) 150 W (8 ohms, 10% THD)
• High Slew Rate Amplifier Yes

Surround Sound Processing

• CINEMA DSP Yes
• DSP Programs 17
• Dialog Level Adjustment Yes
• Virtual Presence Speaker Yes
• Virtual Surround Back Speaker Yes
• Dialogue Lift Yes
• SILENT CINEMA / Virtual CINEMA DSP Yes
• Dolby Atmos Yes
• Dolby Atmos Height Virturalizer Yes
• Dolby TrueHD Yes
• Dolby Digital Plus Yes
• Dolby Surround Yes
• DTS:X Yes
• DTS-HD Master Audio Yes

Audio Features

• File Format MP3 / WMA / MPEG-4 AAC: up to 48 kHz / 16-bit, ALAC: up to 96 kHz / 24-bit, FLAC: up to 384 kHz / 24-bit, WAV / AIFF: up to 384 kHz / 32-bit, DSD: up to 11.2 MHz
• Pure Direct Yes
• Compressed Music Enhancer Yes
• High-resolution Music Enhancer N/A
• YPAO multi-point measurement Yes
• YPAO Volume Yes
• Adaptive DRC (Dynamic Range Control) Yes
• Initial Volume & Maximum Volume Setting Yes
• A.R.T. Wedge Yes
• Bi-amp capability Yes
• Audio Delay Yes (0-500 ms)
• DA Converter 384 kHz / 32-bit BB PCM5102A

Video Features

• HDMI eARC Yes
• HDMI Audio Return Channel Yes
• HDMI Pass-through 8K60B, 4K120AB on HDMI 1-3
• HDMI Up-scaling Yes up to 4K
• HDMI Up-conversion N/A
• Dolby Vision Yes
• HDR 10+ Yes
• RR/ALLM  Yes
• Video adjustment N/A

Connectivity

• MusicCast Surround Yes
• HDMI Input/Output 7 / 1
• HDMI CEC Yes
• USB Input Yes
• Network Port Yes
• Wi-Fi Yes (2.4 / 5 GHz)
• AirPlay 2 Yes
• Bluetooth Yes (SBC / AAC)
• Front AV Input USB
• Digital Audio Input/Output: Optical 1 / 0
• Digital Audio Input/Output: Coaxial 1 / 0
• Analog Audio Input/Output 4 / 0
• Phono Input Yes
• XLR Terminal N/A
• Component Video Input/Output N/A
• Composite Video Input/Output N/A
• Preout 2.2-ch
• Headphone Output 1

Tuner Section

• FM/DAB ONLY (NO AM)
• User Interface
• On-screen display Graphical User Interface
• SCENE Yes (8 sets)
• App Control Yes (iPhone / iPad / Android phone / tablet)
• Web Browser Control Yes
• Remote Control Unit Yes

Zone Control

• Zone 2 Audio Output Pre-out
• Powered Zone Zone 2
• Zone Video Output N/A
• Zone GUI N/A
• RS-232C Interface N/A
• +12V Trigger Output 1
• Remote (IR) Input/Output 1 / 1
• Party Mode Yes

General Standby

• Power Consumption (IR only) 0.1 W
• Auto Power Standby Yes
• ECO mode Yes

Dimensions

• (W x H x D) 435 W x 171 H x 372 D mm (with antenna up:435 W x 245 H x 372 D mm)

Weight

• 10.2 kg.
